 Copper Cable Lugs
|
Copper Lugs Copper Cable Lugs |
| 4 - Hole Copper Lugs Terminals for Transformers |
|
| Material :- Soft High Conductivity Copper |
| Size :- 300mm2 to 1000mm2 |
| Finish :- Electrotinned / Nickel Plated |
Features :- Available as per Stud hole specifications |
|
| Aluminium Long Barrel Connectors Ferrules |
|
| Material :- Soft High Conductivity Copper |
| Size :- 300mm2 to 1000mm2 |
Finish :- Surface Passivated |
| |
|
| |
Copper High Voltage Through & Oil
Stop Connectors/ Splices |
|
| Material :- Soft High Conductivity Copper for splices |
| Size :- 50mm2 to 500mm2 |
Finish :- Electrotinned / Nickel Plated |
| |
|
| Copper In Line Connectors With Dimple Ferrules SPLICES |
|
| Material :- Soft High Conductivity Copper |
| Size :- 1.5mm2 to 2000mm2 |
Finish :- Electrotinned / Nickel Plated |
Features :- Connectors are Provided with a dimple which acts as a conductor & ensures conductors are inserted fully |
|
| |
| Aluminium Long Barrel Lugs |
|
| Material :- High Conductivity Aluminium Tube |
| Size :- 35mm2 to 1200mm2 |
Finish :- Surface Passivated |
Features :- Connectors are refilled with oxide inhibiting compound & capped at both ends |
|
| Copper Butt Connectors |
|
| Material :- Soft High Conductivity Copper |
| Size :- 300mm2 to 1000mm2 |
Finish :- Electrotinned / Nickel Plated |
|
|
| |
| Copper Terminals ( Single hole/ Without Hole) |
|
| Material :- Soft High Conductivity Copper |
| Size :- 1.5mm2 to 1000mm2 |
Finish :- Electrotinned / Nickel Plated |
Features :- For connecting a conductor to an equipment terminal |
|
| Copper Weak Back Ferrules |
|
| Material :- Soft High Conductivity Copper |
| Size :- 16mm2 to 630mm2 |
Finish :- Electrotinned / Nickel Plated |
|
|
| |
| Pre-Insulated Copper Terminals |
|
| |
| |
|
|
|
| Two- Hole / Blank Copper Terminals / Lugs Long Palm |
|
| Material :- Soft High Conductivity Copper |
| Size :- 50mm2 to 1200mm2 |
Finish :- Electrotinned / Nickel Plated |
Features :- Used when cable run fall short or when the system is continuously under vibrations |
|
| |

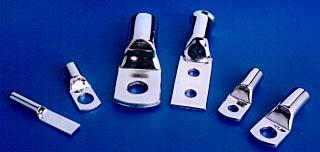

Copper Cable Lugs terminals Solderless Lugs |
|
| |
 Material : High conductivity seamless copper tube to BS 2874 -C 101ASTM B 152-C11000 for All Copper terminals Cable lugs solderless crimping terminals Aluminium terminals Aluminum lugs. |
Features: We are the first company in India to introduce bell entry terminals to facilitate easy cable entry. Provided with inspection window, thus ensuring full conductor insertion. |
| |
Sizes : From 1.5 mm , 2.5mm 4mm , 6mm,10mm, 16 mm2 ,25mm2 , 35mm2 , 50mm2 ,70mm2, 95mm2 , 120 mm2 , 150 mm, 185 mm2 , 240 mm² , 300mm2 , 400mm, 500mm with different stud hole sizes as required. |
| |
Finish: Uniform electro-Tin plating for operating temperatures upto 150 °C. For operating temperatures above 150 °C & upto 350 °C Electrolytic Nickel plating is suggested |
| |
Note: 4 hole lugs for transformers and long palm lugs available. Stamped and pressed lugs also available. |
| |
